In Stock
Model: EN-IQ7HS-66-M-US

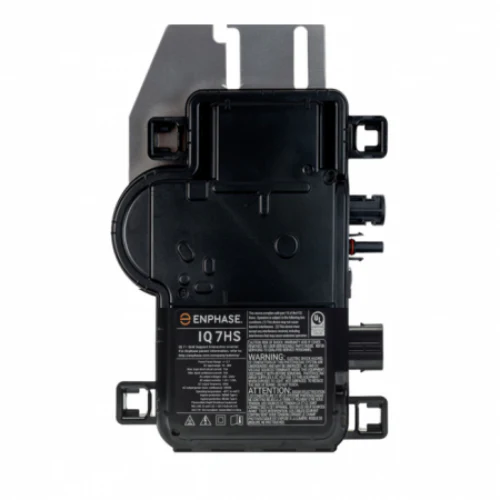

Enphase IQ7HS Microinverter IQ7HS-66-M-US
High-performance Enphase IQ7HS microinverter with 97.0% CEC efficiency, designed for larger solar modules with advanced grid support and monitoring capabilities.
Brand: EnphaseType: MicroinverterPower:
Key Features
- 97.0% CEC efficiency for maximum energy production
- High-capacity 384VA output for larger solar modules
- Compatible with 420W – 500W modules
- Advanced MPPT operating voltage range (38 – 45V)
- Wide DC voltage range (16 – 60V) for flexibility
- UL 1741 SA and IEEE 1547 grid compliance
- NEC 690.12 compliant rapid shutdown for safety
- Real-time monitoring via Enphase Enlighten
- Power Line Communication (PLC) for reliable data transmission
- NEMA 6 outdoor rated enclosure for harsh environments
- Split-phase 240V AC output for residential applications
- 25-year limited warranty for long-term reliability
- Easy installation and maintenance
- Advanced grid-forming capability
- Comprehensive monitoring and diagnostics
Technical Specifications
ModelEN-IQ7HS-66-M-US
Output Power384VA
Nominal Voltage240V AC Split-Phase
Recommended Module Power420W – 500W
MPPT Operating Voltage38 – 45V
DC Voltage Range16 – 60V
CEC Efficiency97.0%
Grid ComplianceUL 1741 SA, IEEE 1547
Rapid ShutdownYes (NEC 690.12 Compliant)
MonitoringEnphase Enlighten (via IQ Gateway)
CommunicationPLC (Power Line Communication)
Enclosure RatingNEMA 6 (Outdoor Rated)
Dimensions (L × W × H)8.3 × 6.9 × 1.2 in
Weight~2.71 lbs
Warranty25-Year Limited Warranty
