In Stock
Model: IOTA-AGM

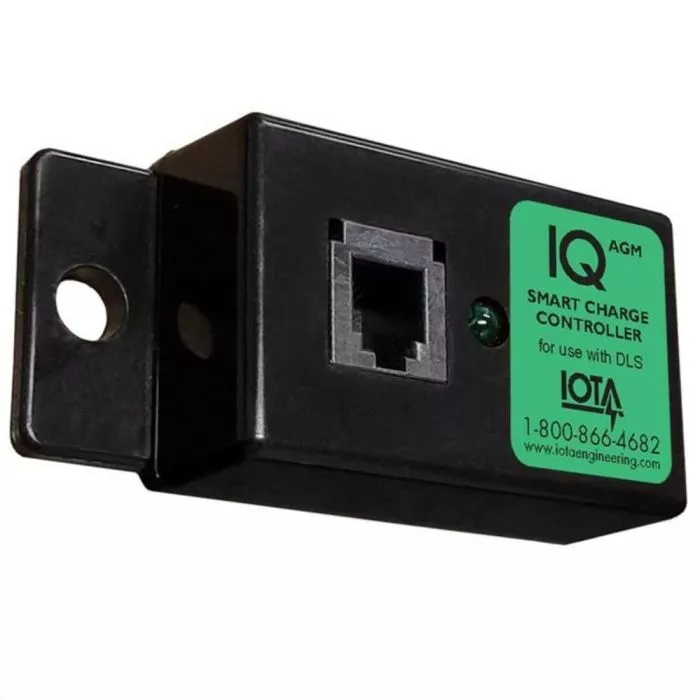

Iota Engineering AGM 14.7VDC/29.4VDC 2-Stage IOTA-AGM Smart Controller
The Iota Engineering AGM Smart Controller uses IOTA's proven 4-stage smart charging profile to ensure batteries get the exact voltage they need, when they need it. This controller is optimized for AGM batteries and provides fully automatic charging to improve charge quality and extend battery lifespan.
Brand: Iota EngineeringType: Smart ControllerPower:
Key Features
- Optimized charging algorithm specifically for AGM batteries
- Fully automatic 4-stage charging improves charge quality and reduces gassing
- Helps prevent sulfation and plate stratification in standby systems
- Reduces charging time and extends battery lifespan
- Easy plug-in installation with status LED for real-time stage feedback
- Bulk Stage (14.8V for 12V systems) delivers fast initial charge
- Absorption Stage (14.2V) completes the charge safely over 8 hours
- Float Stage (13.6V) maintains full charge without overvoltage
- Equalization Stage activates every 7 days of float to desulfate the battery
- Charging profiles are pre-programmed and managed automatically—no configuration required
- Works externally via the DLS dual voltage jack
- 2-year limited warranty from Iota Engineering
- Ideal for AGM battery banks in solar and off-grid energy systems
- Perfect for backup battery charging for telecom and standby power systems
- Suitable for RV and marine applications with deep-cycle AGM batteries
- Compatible with any 12V, 24V, or 48V battery system using IOTA DLS Series chargers
Technical Specifications
Product NameIOTA IQ-AGM
Charging Profile4-stage smart charging
Compatible Battery TypesAGM
Compatible Charger ModelsAll IOTA DLS Series
Installation TypeExternal plug-in to Dual Voltage Jack
Charging StagesBulk, Absorption, Float, Equalization
Bulk Voltage (12V)14.8V
Absorption Voltage (12V)14.2V
Float Voltage (12V)13.6V
Equalization Trigger7-day float activation
LED IndicatorYes (flashing to indicate charging stage)
Warranty2 Years
DimensionsCompact external pendant
Weight~0.5 lb
Voltage Range14.7VDC/29.4VDC
Stage Mode Summary2-Stage system
