Model: PS590M8GF-24/TNH

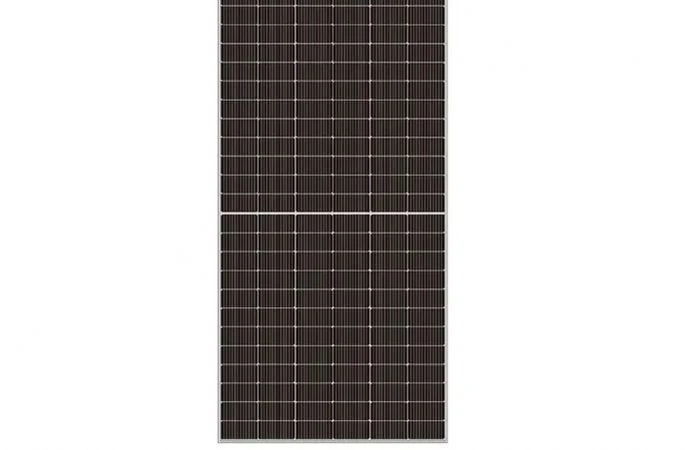

Phono 590W Draco N-TOPCON PS590M8GF-24/TNH Solar Panel
High-performance Phono Draco N-TOPCON solar panel with 22.84% efficiency, featuring 144 half-cut N-Type TOPCon cells with bifacial technology for maximum energy production in commercial and utility-scale installations.
Brand: PhonoType: N-Type TOPCon Monocrystalline BifacialPower: 590W
Key Features
- 22.84% efficiency for maximum power output
- N-Type TOPCon technology for superior performance
- 144 half-cut cells in 12 × 12 layout
- Bifacial technology with 80% ± 5% bifaciality factor
- Dual glass construction for enhanced durability
- Anodized aluminum alloy frame for corrosion resistance
- MC4 compatible connectors for easy installation
- Exceptional mechanical load capacity (5400Pa front, 2400Pa rear)
- Wide operating temperature range (-40°C to +85°C)
- High system voltage compatibility (1500V DC)
- Maximum hail impact resistance (25mm at 80km/h)
- Fire rating Type 29 for safety compliance
- International certifications (IEC 61215, IEC 61730, UL 61730)
- Management standards compliance (ISO 9001, ISO 14001, ISO 45001)
- Power tolerance of 0 to +5W for consistent performance
Technical Specifications
Model NumberPS590M8GF-24/TNH
Solar Cell TypeN-Type TOPCon Monocrystalline Bifacial
Number of Cells144 Half-Cut Cells (12 × 12 Layout)
Nominal Power Output (Pmax)590W
Module Efficiency22.84%
Voltage at Pmax (Vmpp)43.58V
Current at Pmax (Impp)13.54A
Open Circuit Voltage (Voc)52.68V
Short Circuit Current (Isc)14.25A
Temperature Coefficient (Pmax)-0.30%/K
Maximum System Voltage1500V DC
Power Tolerance0 to +5W
Bifaciality Factor80% ± 5%
Mechanical Load Capacity5400Pa (Front), 2400Pa (Rear)
Dimensions (L × W × H)89.69 × 44.65 × 1.18 in
Weight71.65 lbs
Glass (Front & Rear)2.0mm Tempered Dual Glass
FrameAnodized Aluminum Alloy
Cable & Connector4mm² (IEC), 450mm (+) / 250mm (-), MC4 Compatible
Operating Temperature-40°C to +85°C
Maximum Hail Impact25mm at 80km/h
Fire RatingType 29
CertificationsIEC 61215, IEC 61730, UL 61730
Management StandardsISO 9001, ISO 14001, ISO 45001
