In Stock
Model: BAT10K1

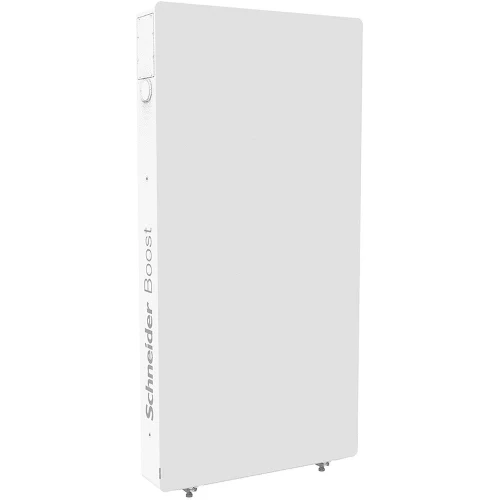

Schneider 10kWh Electric Boost LFP Battery BAT10K1
High-performance Schneider 10kWh LFP battery system with 96% roundtrip efficiency, designed for residential energy storage with advanced backup capabilities and comprehensive monitoring.
Brand: SchneiderType: Power:
Key Features
- 10.56 kWh nameplate capacity with 10 kWh usable energy
- 96% roundtrip DC efficiency for maximum energy savings
- High power output: 8.1 kW continuous discharge, 13.4 kW peak backup
- Advanced LFP chemistry for safety and long cycle life
- Flexible installation options (wall or floor mount)
- Type 4X enclosure rating for indoor/outdoor installation
- Wide operating temperature range (-15°C to 55°C)
- High altitude operation up to 13,100 ft (4,000 m)
- 100% humidity tolerance (non-condensing)
- LRA load start support up to 100A for motor loads
- Comprehensive monitoring and control capabilities
- Seamless integration with Schneider Inverter 7.7
- Backup power capabilities with Pulse CSED/Backup Controller
- UL 9540, UL 9540A, UL 1973 certified for safety compliance
- FCC Part 15 Class B certified for electromagnetic compatibility
- 10-year warranty or 30 MWh throughput guarantee
- Professional-grade construction for residential applications
Technical Specifications
ModelBAT10K1
Nameplate Capacity10.56 kWh
Usable Energy10 kWh
Max Continuous Discharge Power8.1 kW
Max Continuous Charge Power5.2 kW
Charge/Discharge Voltage Range370 – 472 V
Nominal Discharge Current20 A
Nominal Charge Current14 A
Peak Output Power (Backup)13.4 kW (5 seconds)
Continuous Output (Backup)7.68 kW
LRA Load Start Support100 A
Roundtrip DC Efficiency96%
ChemistryLithium Iron Phosphate (LFP)
Battery InstallationWall or floor mount
Battery Dimensions (W × H × D)25.6 × 51.2 × 5.1 in
Battery Weight279 lbs
Enclosure RatingType 4X (Indoor/Outdoor)
Max Operating Temp5°F to 131°F (-15°C to 55°C)
Storage Temp14°F to 104°F (-10°C to 40°C)
Operating Humidity0% to 100% (non-condensing)
Max Altitude13,100 ft (4,000 m)
Required InverterSchneider Inverter 7.7 (HY8K1NA1)
Required for BackupPulse CSED or Pulse Backup Controller
CertificationsUL 9540, UL 9540A, UL 1973, FCC Part 15 Class B
Warranty10 Years or 30 MWh throughput
