In Stock
Model: SE5700H-USMNBE78

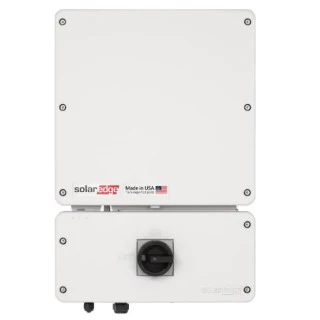

SolarEdge 7KW Home Hub Inverter SE5700H-USMNBE78
Advanced hybrid inverter with integrated battery backup capabilities, featuring high efficiency and comprehensive monitoring for residential solar + storage systems.
Brand: SolarEdgeType: Hybrid InverterPower:
Key Features
- 99.2% maximum efficiency for optimal energy production
- 99% CEC weighted efficiency at 240V for superior performance
- High power output of 5760W @ 240V / 5000W @ 208V
- Integrated battery backup with up to 12,500W backup power
- Support for up to 3 SolarEdge Home Battery 400V units
- Multiple input ports: 3 PV and 2 Battery (40A per port)
- Advanced monitoring via SolarEdge Home Network
- Comprehensive communication options (RS485, Ethernet, Wi-Fi, Cellular)
- NEMA 4X protection rating for outdoor installation
- Wide operating temperature range (−40°C to 60°C)
- Low noise operation (< 50 dBA) for residential use
- Natural convection cooling for reliable operation
- High surge current support (up to 106A LRA)
- UL 1741, UL 9540, IEEE 1547 certified for safety compliance
- NEC 690.11/12 and ANSI C12.20 compliant for code requirements
Technical Specifications
ModelSE5700H-USMNBE78
AC Output Power (Grid)5760W @ 240V / 5000W @ 208V
Max Efficiency99.2%
CEC Weighted Efficiency99% @ 240V / 98.5% @ 208V
Max Input Voltage / Nominal480VDC / 380VDC
Max Input Power11,520W @ 240V / 10,000W @ 208V
Max Input Current30A @ 240V / 26A @ 208V
Input Ports3 PV, 2 Battery (40A per port)
Battery SupportSolarEdge Home Battery 400V (up to 3 units)
Backup Output PowerUp to 12,500W (11,400W above 86°F)
Max Output Current (Backup)52A
LRA Support (Backup)Up to 106A
AC Output Voltage Range183 – 264VAC
AC Frequency59.3 – 60 – 60.5Hz
CoolingNatural Convection
Noise< 50 dBA
Dimensions (H × W × D)21.06 × 14.6 × 8.2 in
Weight44.9 lbs
Protection RatingNEMA 4X
Operating Temp Range−40°F to 140°F (−40°C to 60°C)
Supported CommunicationRS485, Ethernet, Wi-Fi (opt.), Cellular (opt.), SolarEdge Home Network
CertificationsUL 1741, UL 9540, IEEE 1547, NEC 690.11/12, ANSI C12.20
