In Stock
Model: SolarEdge U650

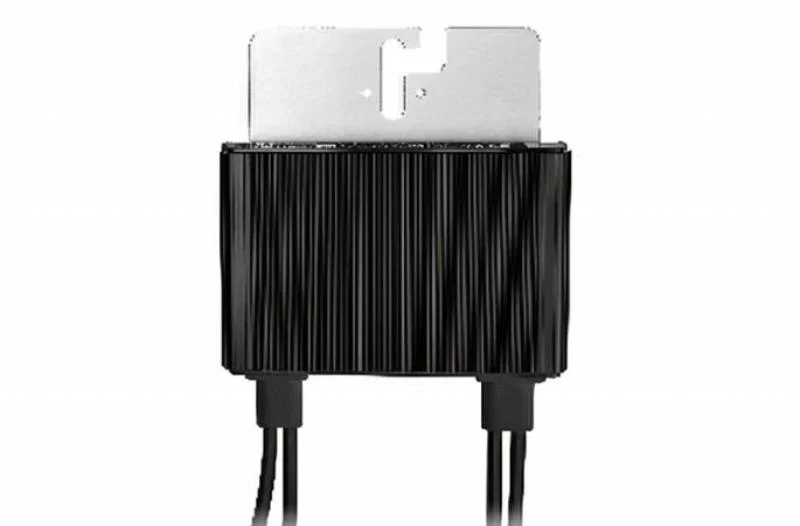

SolarEdge Power Optimizer 650W 15A 60V U650-1GM4MRMU Domestic Content
High-performance power optimizer with 99.5% maximum efficiency, designed to maximize energy production from individual solar panels with advanced monitoring and safety features.
Brand: SolarEdgeType: Power OptimizerPower:
Key Features
- 99.5% maximum efficiency for optimal energy production
- 98.6% weighted efficiency for consistent performance
- High power handling capacity of 650W
- Wide MPPT operating range (8–60V) for flexibility
- Maximum input current of 15A for high-power panels
- Advanced monitoring and diagnostics capabilities
- SafeDC technology for rapid shutdown compliance
- IP68 / NEMA6P protection rating for harsh environments
- MC4 connector compatibility for easy installation
- Wide operating temperature range (-40°C to +85°C)
- 25-year warranty for long-term reliability
- Domestic content compliance for project requirements
- Individual panel optimization for maximum system yield
- Real-time monitoring and performance tracking
- Lightweight and compact design for easy installation
Technical Specifications
ModelSolarEdge U650
Rated Input DC Power650W
Maximum Input Voltage (Voc)60V
MPPT Operating Range8–60V
Maximum Input Current (Isc)15A
Maximum Input Short Circuit Current18.75A
Maximum Efficiency99.5%
Weighted Efficiency98.6%
Maximum Output Voltage60V
Maximum Output Current15A
Dimensions5.07 × 6.10 × 1.18 in
Weight1.6 lbs
Operating Temperature-40°C to +85°C
Protection RatingIP68 / NEMA6P
Connector TypeMC4
Warranty25 years
